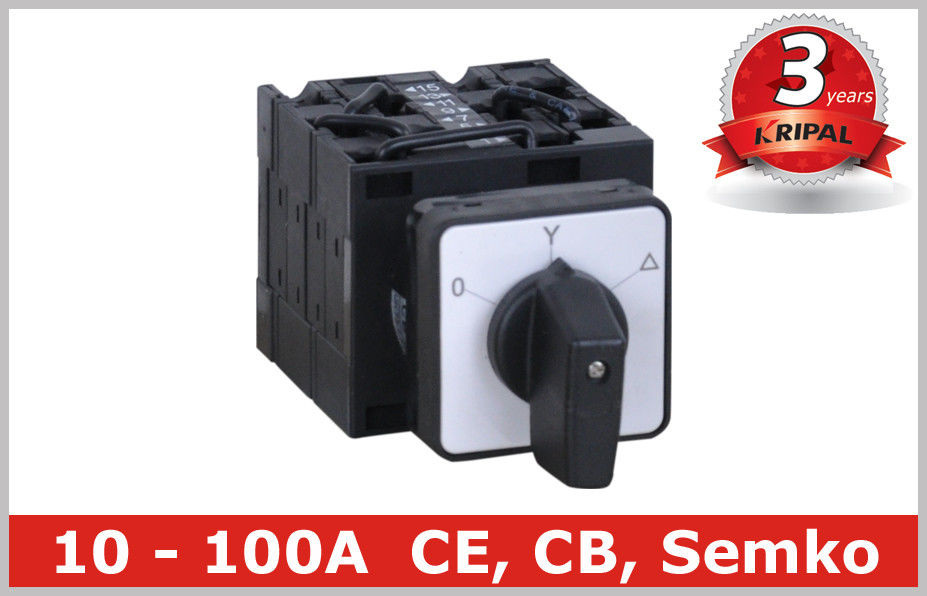

Panel Installation Star Delta Hand Off Auto Selector Switch 25A 32A 40A
Purple Horn has the DESIGN PATENT for UKT series switches,
Cam switch UKT is used for controlling current circuit, to simplify the order sent by central control part. For example, one designated process is started from central control chamber, thus, the time can be saved and the production processes are very obvious.
Specifications:
· Complete range of rating from 10A to 100A
· Large Variety of functions
· Ability to switch inductive and non-inductive loads
· Made from the best materials with high mechanical, electrical, and thermal resistances
· Double break silver alloy contacts
· Conforming with national and international (IEC 947-1,3) standards
· Screw terminals for cables with or without cable terminal for easy identification
· Switching angles 30, 45, 60 and 90 degrees
· Fast, easy and economical installation
· IP degree of protection according to IEC529, EN60529
· Ability to produce custom-made switches, based on customer’s electrical schematic.
· Wide range of attachments to obtain many versions
Installation:
a. front mounting: four pole mounting; single hole mounting;
b. base mounting: Snap-on mounting (DIN rail 35mm)
c. Enclosed Switches: PC enclosure;
d. Our modular technology allows us to build custom switching solutions for up to 24 poles!
Normal Working Conditions:
1. The ambient air temperature does not exceed +40º C, the average temperature within 24 hours and not more than +35º C.
2. The ambient air temperature is not lower than -5º C.
3. Installation site altitude does not exceed 2000m.
4. The relative humidity of the air no more than 50% when the maximum temperature is +40º C and at a lower temperature allows a higher relative humidity, such as when temperature is 20º C the relative humidity reach 90%. To condensation occasionally due to temperature changes should take special measures.
Declaration:
Purple Horn is a factory with more than 20 years manufacturing experience and the mold tooling are built in our own mold tooling center. Furthermore our items are different from others to a certain degree. Hereby, we claim that Purple Horn is the only one who makes this item and the same products you got from other companies are also supplied by Purple Horn.
Why not get goods from us directly?
